| Manufacturer Part Number: | TPS22925CNYPHR |
|---|---|
| Manufacturer: | T-I |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 10900 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC LOAD SWITCH 1CH 6DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TPS22925CNYPHR Datasheet |
| Internal Part Number | 898-TPS22925CNYPHR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Manufacturer Product Page | TPS22925CNYPHR Specifications | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | N-Channel | |
| Interface | On/Off | |
| Voltage - Load | 0.65 V ~ 3.6 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 3A | |
| Rds On (Typ) | 9.2 mOhm | |
| Input Type | Non-Inverting | |
| Features | Slew Rate Controlled | |
| Fault Protection | Reverse Current | |
| Operating Temperature | -40°C ~ 105°C (TA) | |

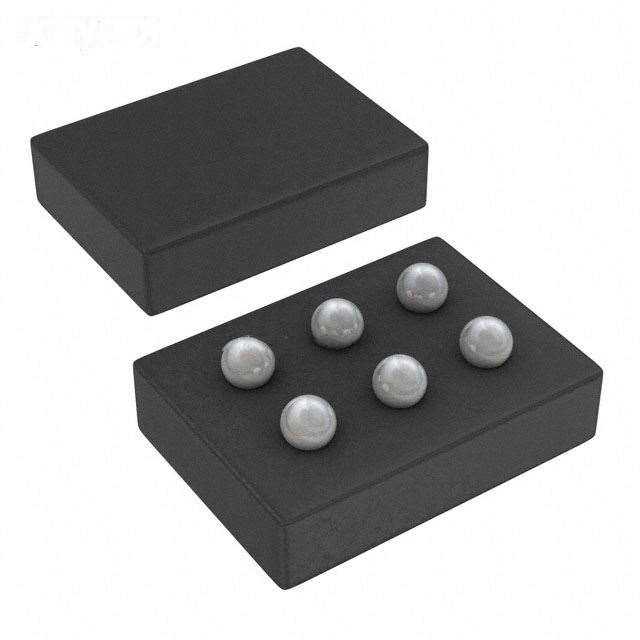

| Package / Case | 6-XFBGA, DSBGA | |
| Supplier Device Package | 6-DSBGA | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TPS22925CNYPHR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TPS22925CNYPHR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TPS22925CNYPHR is new and unused, you can buy TPS22925CNYPHR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TPS22925CNYPHR.
