| Manufacturer Part Number: | TS3A27518EZQSR |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 6 Circuit IC Switch 2:1 6.2 Ohm 24-BGA MICROSTAR JUNIOR (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TS3A27518EZQSR Datasheet |
| Internal Part Number | 898-TS3A27518EZQSR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Signal Switch Solutions | |
| Manufacturer Product Page | TS3A27518EZQSR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Multiplexer/Demultiplexer | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 6 | |
| On-State Resistance (Max) | 6.2 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 300 mOhm | |
| Voltage - Supply, Single (V+) | 1.65 V ~ 3.6 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 59ns, 60.6ns | |
| -3db Bandwidth | 240MHz | |
| Charge Injection | 0.81pC | |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 8.5pF | |
| Current - Leakage (IS(off)) (Max) | 1µA | |
| Crosstalk | -62dB @ 10MHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

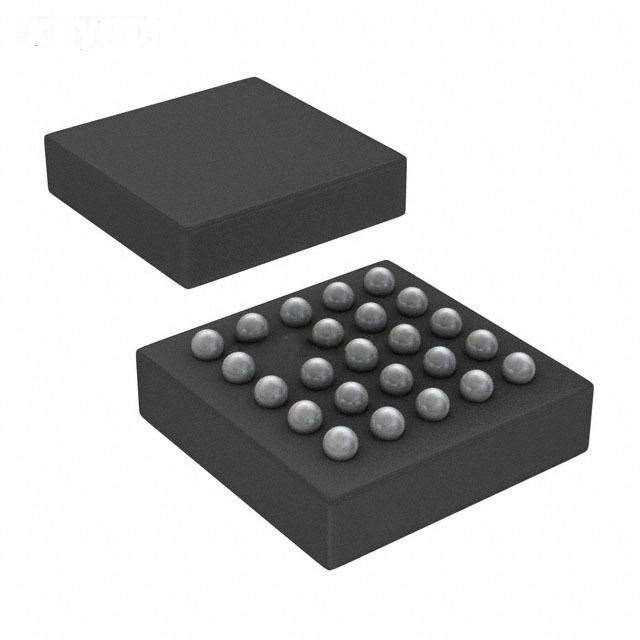

| Package / Case | 24-VFBGA | |
| Supplier Device Package | 24-BGA MICROSTAR JUNIOR (3x3) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TS3A27518EZQSR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TS3A27518EZQSR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TS3A27518EZQSR is new and unused, you can buy TS3A27518EZQSR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS3A27518EZQSR.
