Manufacturer Part Number: | TS3A4751RUCR |
---|---|
Manufacturer: | T-I |
Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | 4 Circuit IC Switch 1:1 900 mOhm 14-QFN (2x2) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TS3A4751RUCR Datasheet |
Internal Part Number | 898-TS3A4751RUCR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Signal Switch Solutions | |
Manufacturer Product Page | TS3A4751RUCR Specifications | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Switch | |
Category | Integrated Circuits (ICs) | |
Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
Manufacturer | T I | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Switch Circuit | SPST - NO | |
Multiplexer/Demultiplexer Circuit | 1:1 | |
Number of Circuits | 4 | |
On-State Resistance (Max) | 900 mOhm | |
Channel-to-Channel Matching (ΔRon) | 30 mOhm | |
Voltage - Supply, Single (V+) | 1.6 V ~ 3.6 V | |
Voltage - Supply, Dual (V±) | - | |
Switch Time (Ton, Toff) (Max) | 14ns, 9ns | |
-3db Bandwidth | 125MHz | |
Charge Injection | 3pC | |
Channel Capacitance (CS(off), CD(off)) | 23pF, 20pF | |
Current - Leakage (IS(off)) (Max) | 2nA | |
Crosstalk | -95dB @ 1MHz | |
Operating Temperature | -40°C ~ 85°C (TA) | |

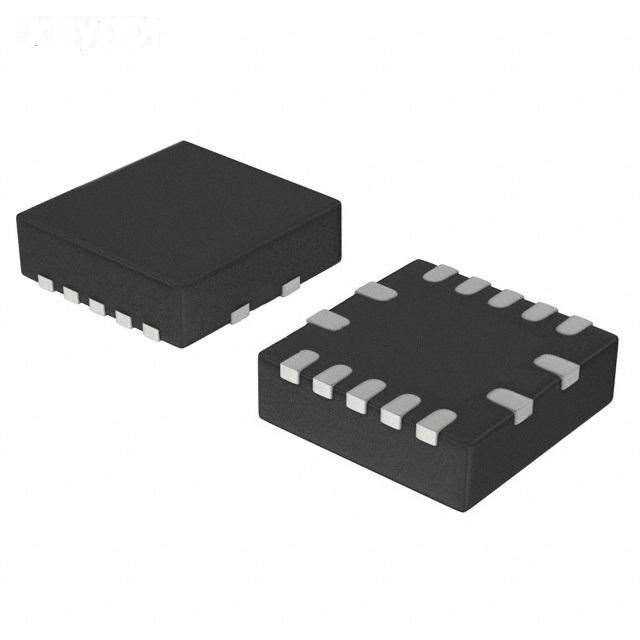

Package / Case | 14-XFQFN | |
Supplier Device Package | 14-QFN (2x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TS3A4751RUCR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TS3A4751RUCR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TS3A4751RUCR is new and unused, you can buy TS3A4751RUCR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS3A4751RUCR.
