| Manufacturer Part Number: | TSC2046EIZQCR |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Data Acquisition - Touch Screen Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Touchscreen Controller 4-Wire 12 bit MICROWIRE™, QSPI™, Serial, SPI™ Interface 48-BGA MICROSTAR JUNIOR (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TSC2046EIZQCR Datasheet |
| Internal Part Number | 898-TSC2046EIZQCR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Data Converter Basics | |
| Manufacturer Product Page | TSC2046EIZQCR Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Touch Screen Controllers | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Resistive | |
| Touch Panel Interface | 4-Wire | |
| Number of Inputs/Keys | 1 TSC | |
| Resolution (Bits) | 12 b | |
| Evaluation Tools | Available | |
| Data Interface | MICROWIRE™, QSPI™, Serial, SPI™ | |
| Data Rate/Sampling Rate (SPS, BPS) | 125k | |
| Voltage Reference | Internal | |
| Voltage - Supply | 2.2 V ~ 5.25 V | |
| Current - Supply | 780µA | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 48-VFBGA | |

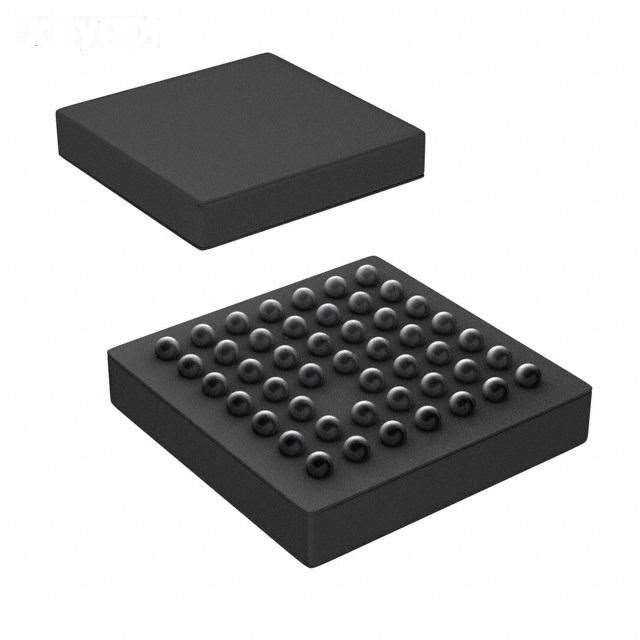

| Supplier Device Package | 48-BGA MICROSTAR JUNIOR (4x4) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TSC2046EIZQCR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TSC2046EIZQCR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TSC2046EIZQCR is new and unused, you can buy TSC2046EIZQCR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TSC2046EIZQCR.
