Manufacturer Part Number: | UCC28911DR |
---|---|
Manufacturer: | T-I |
Product Category: | PMIC - AC DC Converters, Offline Switchers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Converter Offline Flyback Topology 420Hz ~ 115kHz 7-SOIC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2 (1 Year) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | UCC28911DR Datasheet |
Internal Part Number | 898-UCC28911DR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - AC DC Converters, Offline Switchers | |
Manufacturer | T I | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Output Isolation | Isolated | |
Internal Switch(s) | Yes | |
Voltage - Breakdown | 700V | |
Topology | Flyback | |
Voltage - Start Up | 9.5V | |
Voltage - Supply (Vcc/Vdd) | 6.5 V ~ 30 V | |
Duty Cycle | - | |
Frequency - Switching | 420Hz ~ 115kHz | |
Power (Watts) | 12W | |
Fault Protection | Current Limiting, Over Temperature, Over Voltage | |
Control Features | - | |
Operating Temperature | -40°C ~ 125°C (TJ) | |

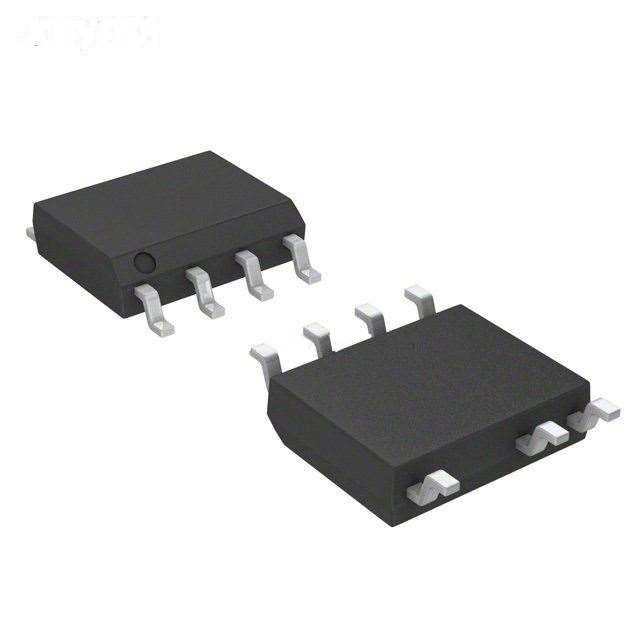

Package / Case | 8-SOIC (0.154", 3.90mm Width) 7 leads | |
Supplier Device Package | 7-SOIC | |
Mounting Type | Surface Mount | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | UCC28911DR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
UCC28911DR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of UCC28911DR is new and unused, you can buy UCC28911DR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for UCC28911DR.
