UNRL21500A

UNRL21500A
Manufacturer Part Number:UNRL21500A
Manufacturer:
Product Category:Transistors - Bipolar (BJT) - Single, Pre-Biased
Available Quantity:19010 Pieces
Unit Price:Quote by Email
Description:TRANS PREBIAS NPN 150MW ML4-N1
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: UNRL21500A Datasheet
UNRL21500A´s Parameters
Internal Part Number898-UNRL21500A
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Featured ProductWearables Technology Components
CategoryDiscrete Semiconductor Products
FamilyTransistors - Bipolar (BJT) - Single, Pre-Biased
ManufacturerPanasonic Electronic Components
Series-
PackagingTape & Reel (TR)
Part StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)50V
Resistor - Base (R1) (Ohms)10k
Resistor - Emitter Base (R2) (Ohms)-
DC Current Gain (hFE) (Min) @ Ic, Vce160 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)500nA
Frequency - Transition150MHz
Power - Max150mW
Mounting TypeSurface Mount
Package / CaseSC-103

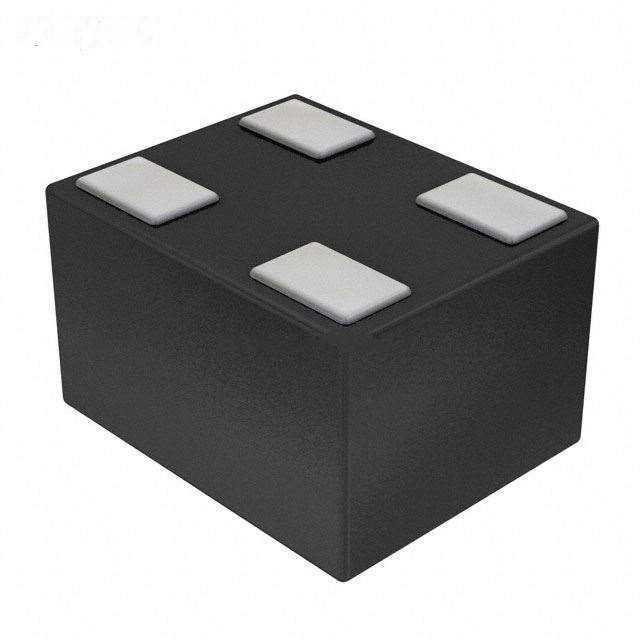

Supplier Device PackageML4-N1
Standard Package 10,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartUNRL21500A
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

UNRL21500A is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of UNRL21500A is new and unused, you can buy UNRL21500A Panasonic Electronic Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for UNRL21500A.
