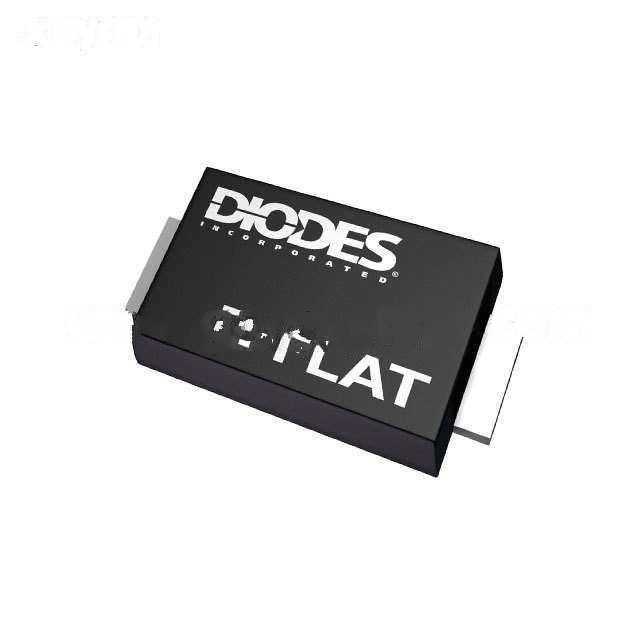

| Manufacturer Part Number: | US1MDF-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 13350 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 1KV 1A DFLAT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | US1MDF-13 Datasheet |
| Internal Part Number | 898-US1MDF-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | US1JDF-13/US1MDF-13/US2JDF-13 D-FLAT Rectifier Series | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | D-FLAT | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 75ns | |
| Current - Reverse Leakage @ Vr | 5µA @ 1000V | |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, Flat Lead | |
| Supplier Device Package | D-Flat | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | US1MDF-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
US1MDF-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of US1MDF-13 is new and unused, you can buy US1MDF-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for US1MDF-13.
