| Manufacturer Part Number: | VN5E010MHTR-E |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DVR SWITCH HI SIDE SGL HPAK-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VN5E010MHTR-E Datasheet |
| Internal Part Number | 898-VN5E010MHTR-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | VN5E010MH-E View All Specifications | |
| Product Training Modules | VIPower H-Bridges | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | STMicroelectronics | |
| Series | VIPower™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | N-Channel | |
| Interface | On/Off | |
| Voltage - Load | 4.5 V ~ 28 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 60A | |
| Rds On (Typ) | 10 mOhm | |
| Input Type | Non-Inverting | |
| Features | Auto Restart | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Package / Case | TO-252-7, DPak (6 Leads + Tab) | |

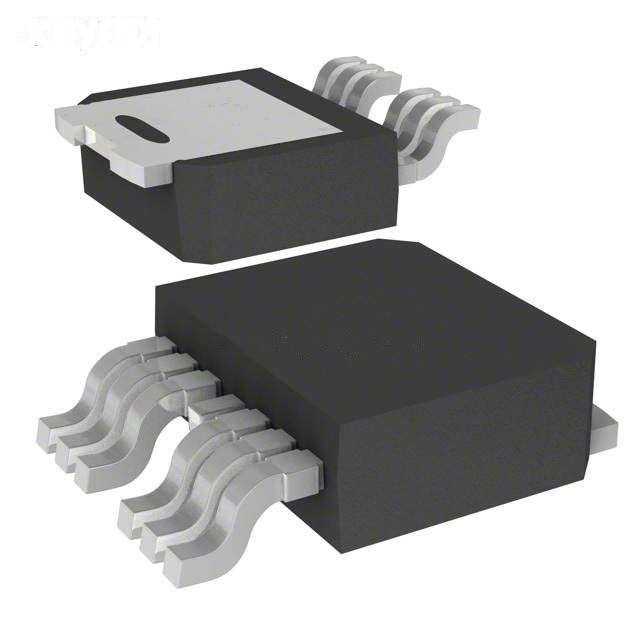

| Supplier Device Package | 6-HPAK | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VN5E010MHTR-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VN5E010MHTR-E is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of VN5E010MHTR-E is new and unused, you can buy VN5E010MHTR-E STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VN5E010MHTR-E.
