| Manufacturer Part Number: | VS-P405W |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Thyristors - SCRs - Modules |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | SCR Module 1200V 40A (DC) Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount 8-PACE-PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VS-P405W Datasheet |
| Internal Part Number | 898-VS-P405W | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SCR Module Selection Guide | |
| Online Catalog | VS-P400 Series | |
| Category | Discrete Semiconductor Products | |
| Family | Thyristors - SCRs - Modules | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) | |
| Number of SCRs, Diodes | 2 SCRs, 2 Diodes | |
| Voltage - Off State | 1200V | |
| Current - Gate Trigger (Igt) (Max) | 60mA | |
| Current - On State (It (AV)) (Max) | - | |
| Current - On State (It (RMS)) (Max) | 40A (DC) | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 385A, 400A | |
| Current - Hold (Ih) (Max) | 130mA | |
| Mounting Type | Chassis Mount | |

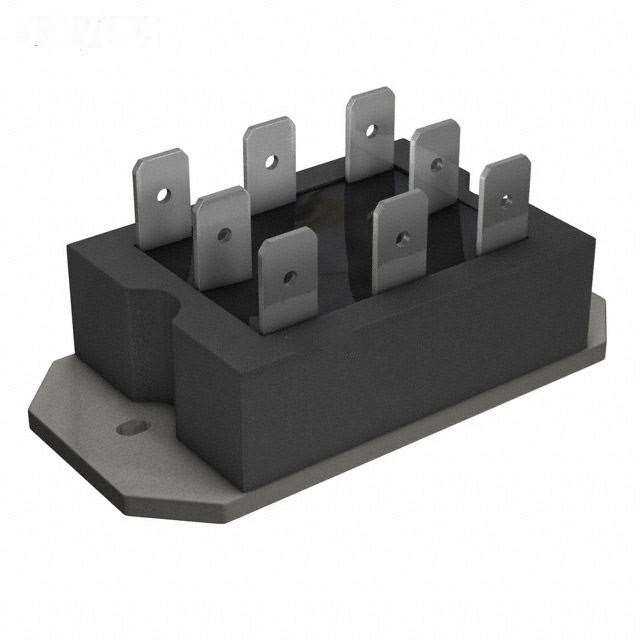

| Package / Case | 8-PACE-PAK | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VS-P405W | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VS-P405W is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of VS-P405W is new and unused, you can buy VS-P405W Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VS-P405W.
