| Manufacturer Part Number: | VS-SD800C30L |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Standard 3000V (3kV) 1180A Chassis Mount DO-200AB, B-PUK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | VS-SD800C30L Datasheet |
| Internal Part Number | 898-VS-SD800C30L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Vishay Semiconductor Diodes Division | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 3000V (3kV) | |
| Current - Average Rectified (Io) | 1180A | |
| Voltage - Forward (Vf) (Max) @ If | 1.66V @ 2000A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 50mA @ 3000V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Chassis Mount | |

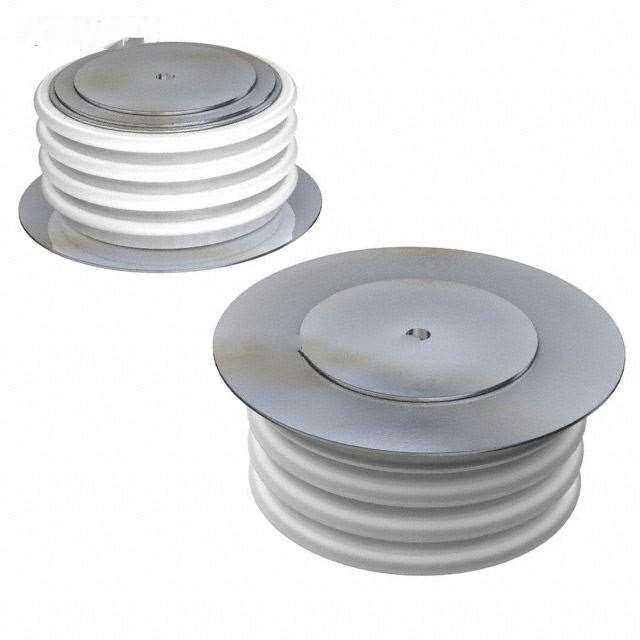

| Package / Case | DO-200AB, B-PUK | |
| Supplier Device Package | DO-200AB, B-PUK | |
| Operating Temperature - Junction | * | |
| Standard Package | 3 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | VS-SD800C30L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
VS-SD800C30L is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of VS-SD800C30L is new and unused, you can buy VS-SD800C30L Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for VS-SD800C30L.
