| Manufacturer Part Number: | XRP7603EDB-F |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) Analog, PWM Dimming 500mA 8-HSOICN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | XRP7603EDB-F Datasheet |
| Internal Part Number | 898-XRP7603EDB-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 30/Oct/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 4.5V | |
| Voltage - Supply (Max) | 29V | |
| Voltage - Output | - | |
| Current - Output / Channel | 500mA | |
| Frequency | 1.2MHz | |
| Dimming | Analog, PWM | |
| Applications | Lighting | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

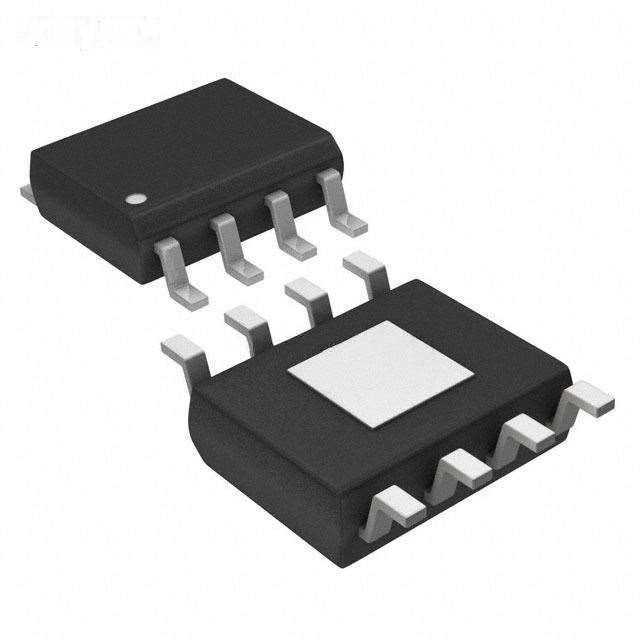

| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | |
| Supplier Device Package | 8-HSOICN | |
| Standard Package | 46 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | XRP7603EDB-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
XRP7603EDB-F is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of XRP7603EDB-F is new and unused, you can buy XRP7603EDB-F Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for XRP7603EDB-F.
