| Manufacturer Part Number: | ZXMP10A17E6TA |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 36010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 100V 1.3A SOT23-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ZXMP10A17E6TA Datasheet |
| Internal Part Number | 898-ZXMP10A17E6TA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| PCN Design/Specification | Leadframe Material Update 09/Apr/2014 Date Code Mark Update 13/Jan/2015 | |
| Online Catalog | P-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 1.3A (Ta) | |
| Rds On (Max) @ Id, Vgs | 350 mOhm @ 1.4A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 6.1nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | 424pF @ 50V | |
| Power - Max | 1.1W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

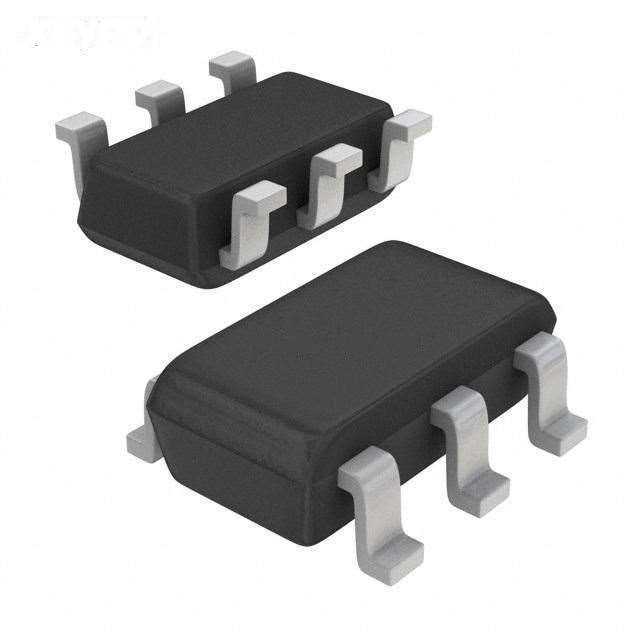

| Package / Case | SOT-23-6 | |
| Supplier Device Package | SOT-26 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ZXMP10A17E6TA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ZXMP10A17E6TA is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of ZXMP10A17E6TA is new and unused, you can buy ZXMP10A17E6TA Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZXMP10A17E6TA.
