Manufacturer Part Number: | ZXTC6718MCTA |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | Transistors - Bipolar (BJT) - Arrays |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS NPN/PNP 20V 4.5A/3.5A 8DFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ZXTC6718MCTA Datasheet |
Internal Part Number | 898-ZXTC6718MCTA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Cert of Compliance | |
Online Catalog | NPN, PNP Transistor Arrays | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - Arrays | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Transistor Type | NPN, PNP | |
Current - Collector (Ic) (Max) | 4.5A, 3.5A | |
Voltage - Collector Emitter Breakdown (Max) | 20V | |
Vce Saturation (Max) @ Ib, Ic | 300mV @ 125mA, 4.5A / 300mV @ 350mA, 3.5A | |
Current - Collector Cutoff (Max) | 100nA | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2A, 2V / 150 @ 2A, 2V | |
Power - Max | 1.7W | |
Frequency - Transition | 140MHz, 180MHz | |
Mounting Type | Surface Mount | |

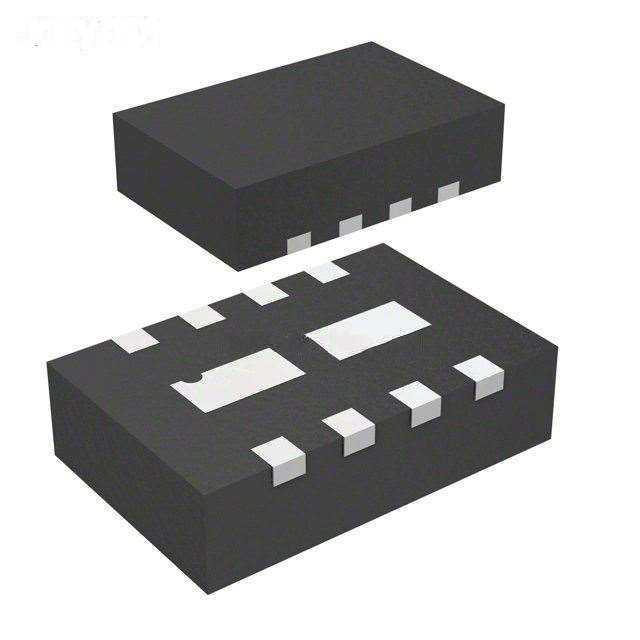

Package / Case | 8-WDFN Exposed Pad | |
Supplier Device Package | 8-DFN (3x2) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ZXTC6718MCTA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ZXTC6718MCTA is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of ZXTC6718MCTA is new and unused, you can buy ZXTC6718MCTA Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ZXTC6718MCTA.
