| Manufacturer Part Number: | APTGL120TA120TPG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

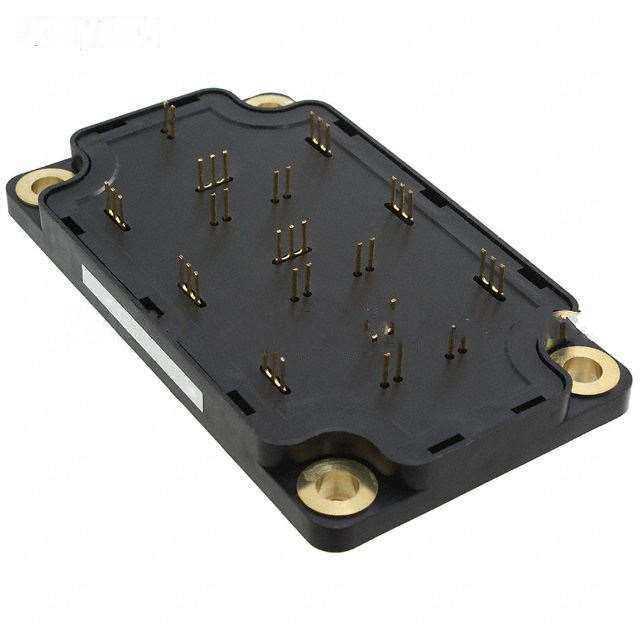

| Description: | IGBT Module Trench Field Stop Three Phase 1200V 140A 517W Chassis Mount SP6-P |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGL120TA120TPG Datasheet |
| Internal Part Number | 898-APTGL120TA120TPG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Triple Phase Leg Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Three Phase | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 140A | |
| Power - Max | 517W | |
| Vce(on) (Max) @ Vge, Ic | 2.15V @ 15V, 100A | |
| Current - Collector Cutoff (Max) | 250µA | |
| Input Capacitance (Cies) @ Vce | 6.2nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6-P | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGL120TA120TPG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGL120TA120TPG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGL120TA120TPG is new and unused, you can buy APTGL120TA120TPG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGL120TA120TPG.
