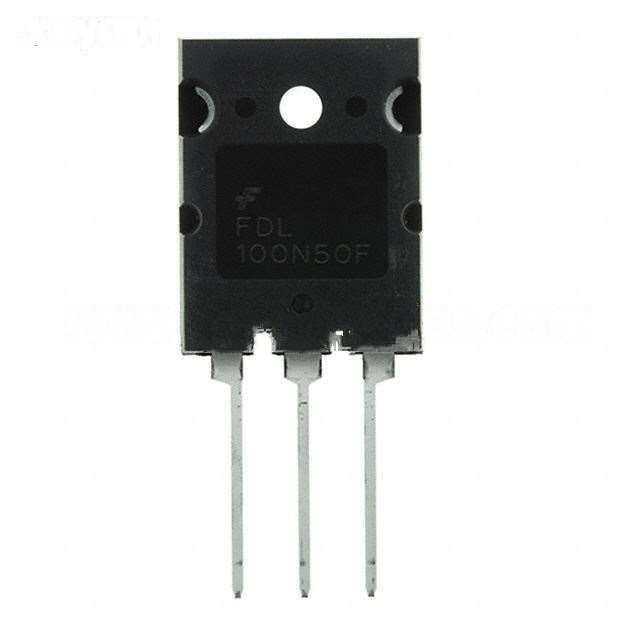

| Manufacturer Part Number: | FDL100N50F |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9178 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 500V 100A TO-264 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDL100N50F Datasheet |
| Internal Part Number | 898-FDL100N50F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Wafer Fabrication 04/Feb/2013 Assembly Site Transfer 06/Apr/2015 | |
| PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | UniFET™ | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 100A (Tc) | |
| Rds On (Max) @ Id, Vgs | 55 mOhm @ 50A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 238nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 12000pF @ 25V | |
| Power - Max | 2500W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-264-3, TO-264AA | |
| Supplier Device Package | TO-264 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDL100N50F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDL100N50F is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDL100N50F is new and unused, you can buy FDL100N50F Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDL100N50F.
