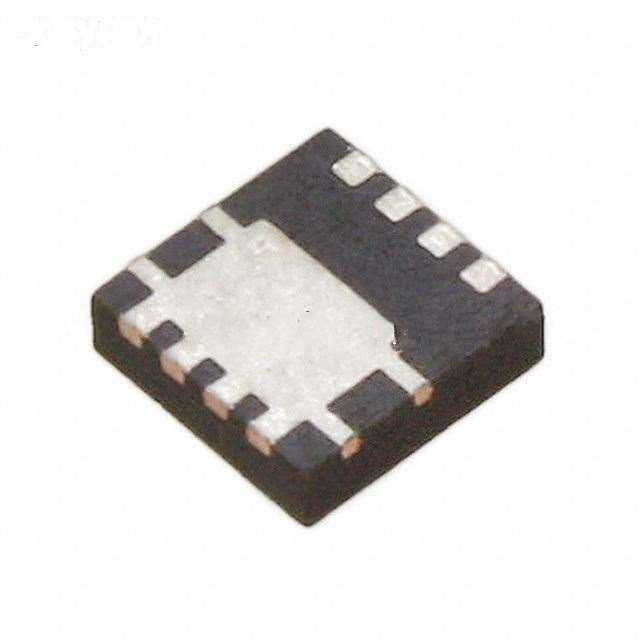

| Manufacturer Part Number: | FDMC7660DC |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 40A POWER33 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMC7660DC Datasheet |
| Internal Part Number | 898-FDMC7660DC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | Dual Cool™, PowerTrench® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 40A (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.2 mOhm @ 22A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 76nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 5170pF @ 15V | |
| Power - Max | 3W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerTDFN | |
| Supplier Device Package | 8-PQFN (3.3x3.3), Dual Cool 33 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMC7660DC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMC7660DC is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMC7660DC is new and unused, you can buy FDMC7660DC Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMC7660DC.
