| Manufacturer Part Number: | FDMF3030 |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MODULE DRMOS 50A 40-PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | FDMF3030 Datasheet |
| Internal Part Number | 898-FDMF3030 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | FDMF 19/Aug/2016 | |
| PCN Assembly/Origin | Wafer 6/8 Inch Addition 16/Jun/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Fairchild Semiconductor | |
| Series | PowerTrench®, SyncFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Configuration | Half Bridge | |
| Applications | Synchronous Buck Converters | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | DrMOS | |
| Rds On (Typ) | 900 mOhm LS, 800 mOhm HS | |
| Current - Output / Channel | 50A | |
| Current - Peak Output | - | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Load | 3 V ~ 24 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Features | Bootstrap Circuit, Diode Emulation, Status Flag | |
| Fault Protection | Over Temperature, Shoot-Through, UVLO | |
| Mounting Type | Surface Mount | |

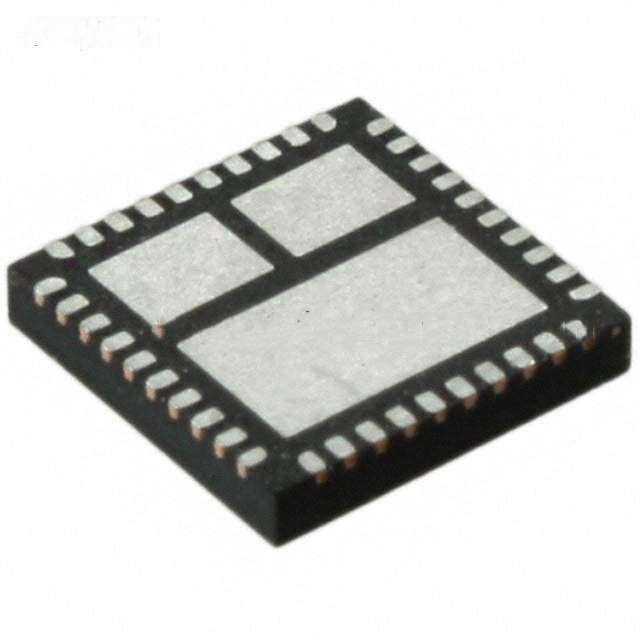

| Package / Case | 40-PowerTFQFN | |
| Supplier Device Package | 40-PQFN (6x6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | FDMF3030 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
FDMF3030 is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FDMF3030 is new and unused, you can buy FDMF3030 Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FDMF3030.
