Manufacturer Part Number: | FJI5603DTU |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Transistors - Bipolar (BJT) - Single |
Available Quantity: | 9516 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS NPN 800V 3A I2PAK |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | FJI5603DTU Datasheet |
Internal Part Number | 898-FJI5603DTU | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Packaging | Tape and Box/Reel Barcode Update 07/Aug/2014 | |
Online Catalog | NPN Transistors | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - Single | |
Manufacturer | Fairchild Semiconductor | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Transistor Type | NPN | |
Current - Collector (Ic) (Max) | 3A | |
Voltage - Collector Emitter Breakdown (Max) | 800V | |
Vce Saturation (Max) @ Ib, Ic | 2.5V @ 200mA, 1A | |
Current - Collector Cutoff (Max) | 100µA | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 400mA, 3V | |
Power - Max | 100W | |
Frequency - Transition | 5MHz | |
Mounting Type | Through Hole | |

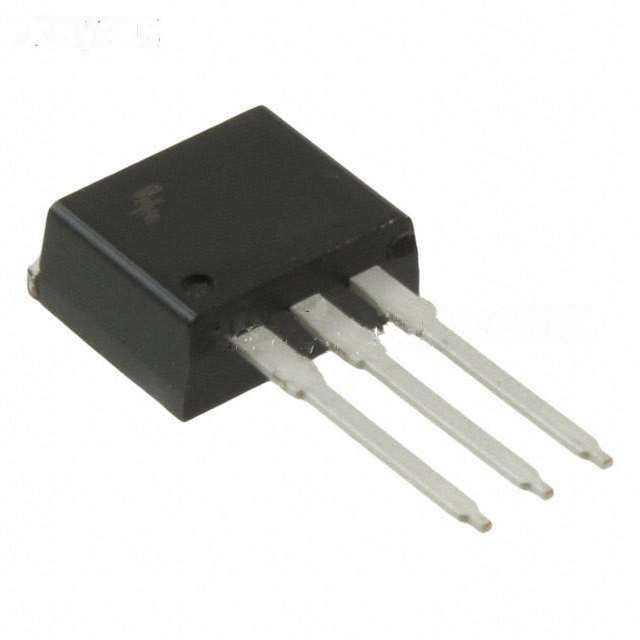

Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA | |
Supplier Device Package | I2PAK | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | FJI5603DTU | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
FJI5603DTU is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of FJI5603DTU is new and unused, you can buy FJI5603DTU Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for FJI5603DTU.
