| Manufacturer Part Number: | HI4P0509-5Z96 |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 4:1 400 Ohm 20-PLCC (9x9) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | HI4P0509-5Z96 Datasheet |
| Internal Part Number | 898-HI4P0509-5Z96 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | EOL 12/Apr/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Last Time Buy | |
| Switch Circuit | SP4T | |
| Multiplexer/Demultiplexer Circuit | 4:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 400 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 20 Ohm | |
| Voltage - Supply, Single (V+) | - | |
| Voltage - Supply, Dual (V±) | ±15V | |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) | |
| -3db Bandwidth | - | |
| Charge Injection | - | |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 12pF | |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) | |
| Crosstalk | - | |
| Operating Temperature | 0°C ~ 75°C (TA) | |

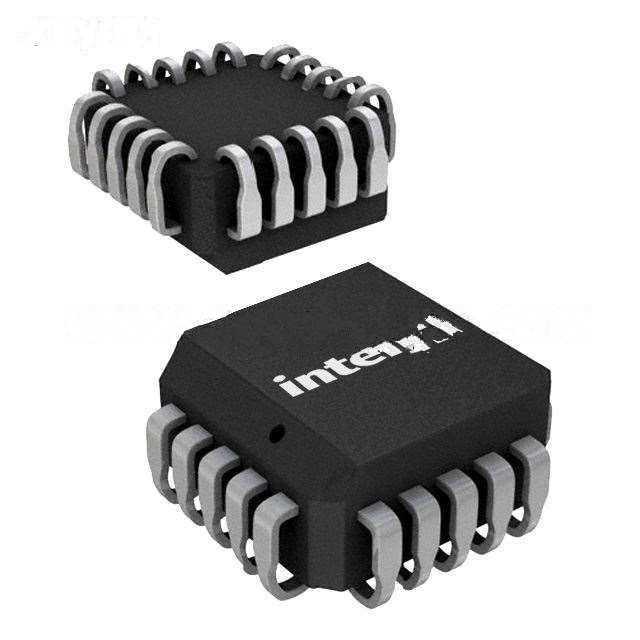

| Package / Case | 20-LCC (J-Lead) | |
| Supplier Device Package | 20-PLCC (9x9) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | HI4P0509-5Z96 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
HI4P0509-5Z96 is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of HI4P0509-5Z96 is new and unused, you can buy HI4P0509-5Z96 Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HI4P0509-5Z96.
