Manufacturer Part Number: | MCC19-14IO8B |
---|---|
Manufacturer: | IXYS |
Product Category: | Thyristors - SCRs - Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | SCR Module 1400V 40A Series Connection - All SCRs Chassis Mount TO-240AA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MCC19-14IO8B Datasheet |
Internal Part Number | 898-MCC19-14IO8B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | SCR Module Selection Guide | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs - Modules | |
Manufacturer | IXYS | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Structure | Series Connection - All SCRs | |
Number of SCRs, Diodes | 2 SCRs | |
Voltage - Off State | 1400V | |
Current - Gate Trigger (Igt) (Max) | 100mA | |
Current - On State (It (AV)) (Max) | 25A | |
Current - On State (It (RMS)) (Max) | 40A | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A | |
Current - Hold (Ih) (Max) | 200mA | |
Mounting Type | Chassis Mount | |

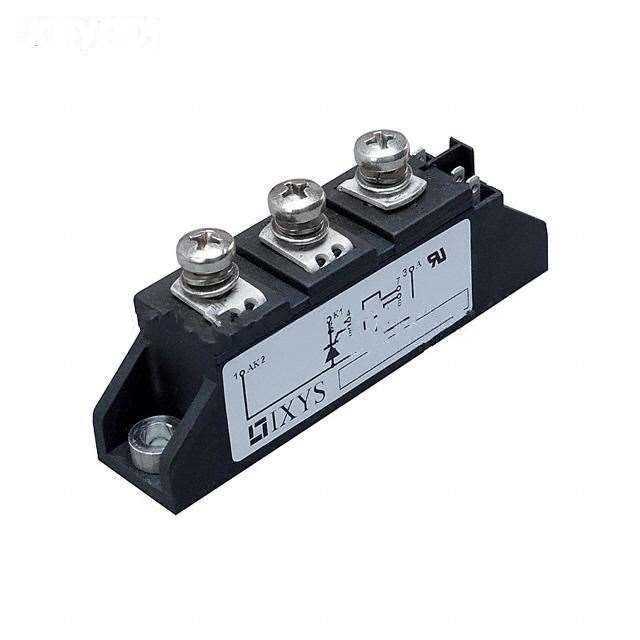

Package / Case | TO-240AA | |
Standard Package | 36 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MCC19-14IO8B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MCC19-14IO8B is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of MCC19-14IO8B is new and unused, you can buy MCC19-14IO8B IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MCC19-14IO8B.
