| Manufacturer Part Number: | NCV8509PDW18R2G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 2 Output 3.3V, 1.8V 16-SOIC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCV8509PDW18R2G Datasheet |
| Internal Part Number | 898-NCV8509PDW18R2G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | 3Q2105 EOL 6/Nov/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | ON Semiconductor | |
| Series | Automotive, AEC-Q100 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 3.3V, 1.8V | |
| Current - Output | - | |
| Voltage - Dropout (Typical) | 0.4V @ 100mA | |
| Number of Regulators | 2 | |
| Voltage - Input | Up to 50V | |
| Current - Limit (Min) | 115mA, 105mA | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

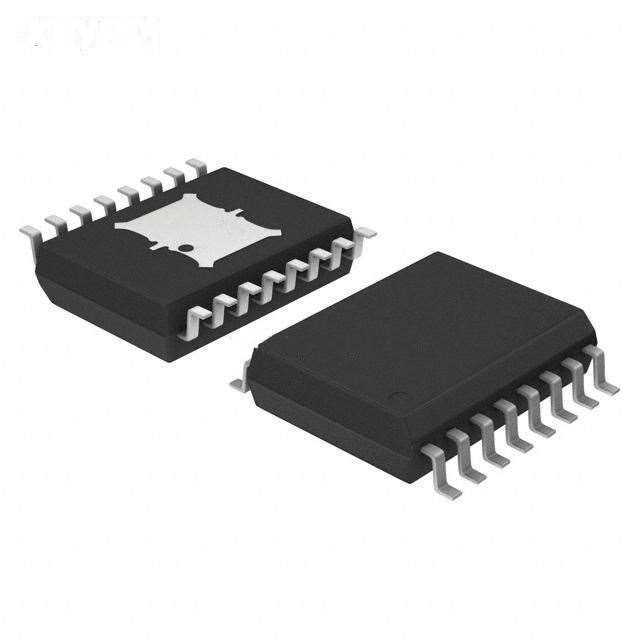

| Package / Case | 16-SOIC (0.295", 7.50mm Width) Exposed Pad | |
| Supplier Device Package | 16-SOIC | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCV8509PDW18R2G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCV8509PDW18R2G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCV8509PDW18R2G is new and unused, you can buy NCV8509PDW18R2G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCV8509PDW18R2G.
