| Manufacturer Part Number: | OPA564AIDWD |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9090 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Amplifier 1 Circuit 20-HSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | OPA564AIDWD Datasheet |
| Internal Part Number | 898-OPA564AIDWD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | General Purpose | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 40 V/µs | |
| Gain Bandwidth Product | 17MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 10pA | |
| Voltage - Input Offset | 2mV | |
| Current - Supply | 39mA | |
| Current - Output / Channel | 1.5A | |
| Voltage - Supply, Single/Dual (±) | 7 V ~ 24 V, ±3.5 V ~ 12 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

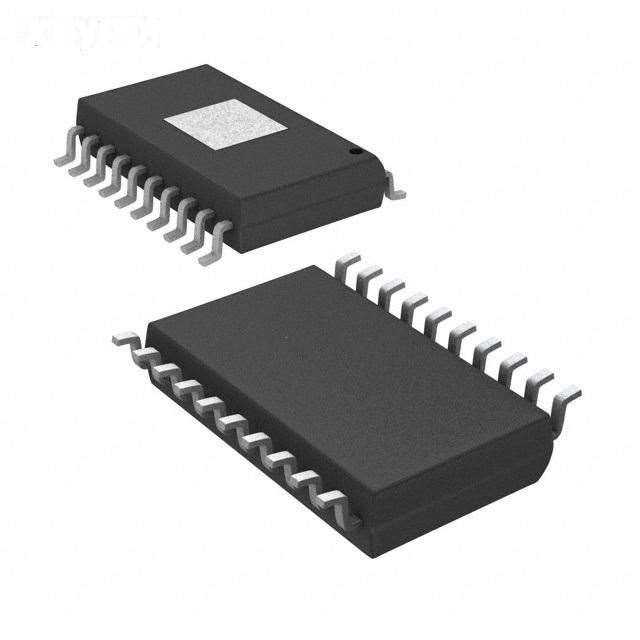

| Package / Case | 20-SOIC (0.295", 7.50mm Width) Exposed Pad | |
| Supplier Device Package | 20-HSOP | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | OPA564AIDWD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
OPA564AIDWD is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of OPA564AIDWD is new and unused, you can buy OPA564AIDWD T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for OPA564AIDWD.
