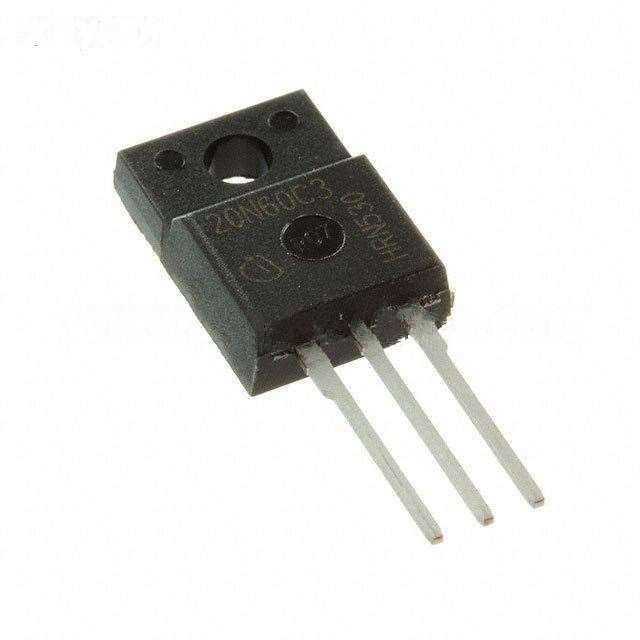

| Manufacturer Part Number: | SPA20N60C3XKSA1 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9478 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 600V 20.7A TO220-3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SPA20N60C3XKSA1 Datasheet |
| Internal Part Number | 898-SPA20N60C3XKSA1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | LeadFrame Design Chg 25/May/2016 | |
| PCN Assembly/Origin | TO220 Fullpak Assembly Site Chg 3/Dec/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | CoolMOS™ | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 600V | |
| Current - Continuous Drain (Id) @ 25°C | 20.7A (Tc) | |
| Rds On (Max) @ Id, Vgs | 190 mOhm @ 13.1A, 10V | |
| Vgs(th) (Max) @ Id | 3.9V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 114nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 2400pF @ 25V | |
| Power - Max | 34.5W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 Full Pack | |
| Supplier Device Package | PG-TO220-3-31 Full Pack | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SPA20N60C3XKSA1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SPA20N60C3XKSA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of SPA20N60C3XKSA1 is new and unused, you can buy SPA20N60C3XKSA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SPA20N60C3XKSA1.
