| Manufacturer Part Number: | STP16DPP05XTTR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 16 Output Linear Shift Register 40mA 24-TSSOP-EP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STP16DPP05XTTR Datasheet |
| Internal Part Number | 898-STP16DPP05XTTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STP16DPP05 View All Specifications | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Linear | |
| Topology | Shift Register | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 16 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 20V | |
| Current - Output / Channel | 40mA | |
| Frequency | 30MHz | |
| Dimming | - | |
| Applications | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |

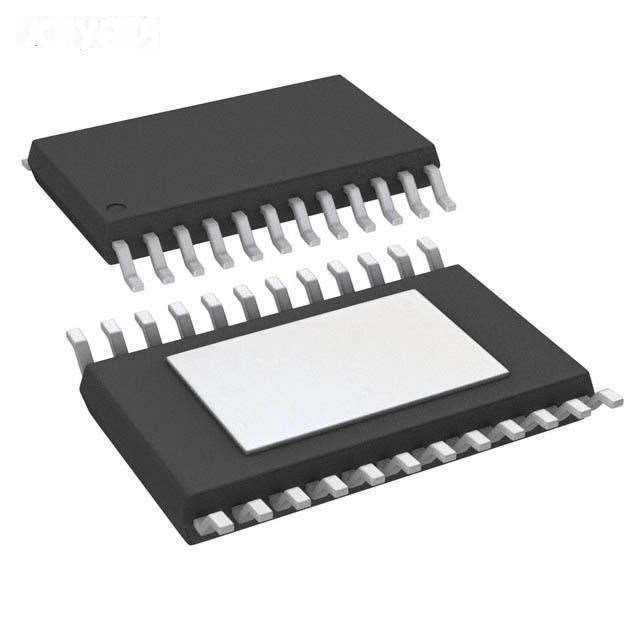

| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | |
| Supplier Device Package | 24-TSSOP-EP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STP16DPP05XTTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STP16DPP05XTTR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STP16DPP05XTTR is new and unused, you can buy STP16DPP05XTTR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STP16DPP05XTTR.
