| Manufacturer Part Number: | STPS1H100AF |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 18860 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 100V 1A SMAFLAT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STPS1H100AF Datasheet |
| Internal Part Number | 898-STPS1H100AF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STPS1H100 View All Specifications | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 770mV @ 1A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 4µA @ 100V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |

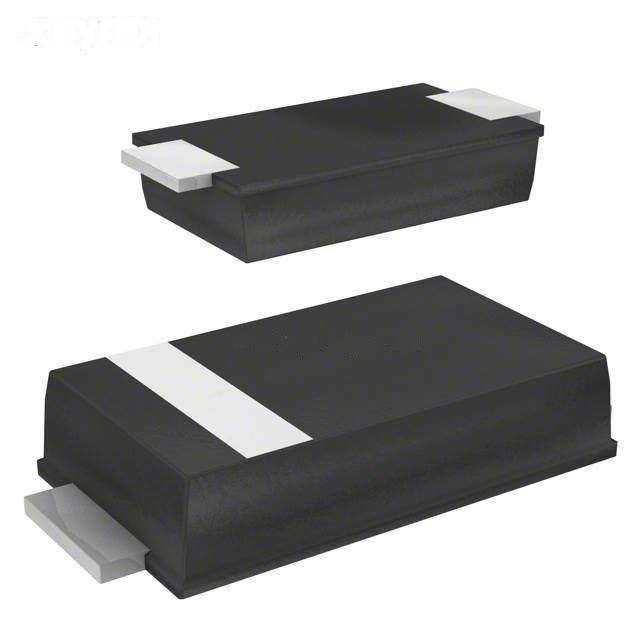

| Package / Case | DO-221AC, SMA Flat Leads | |
| Supplier Device Package | SMAflat | |
| Operating Temperature - Junction | 175°C (Max) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STPS1H100AF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STPS1H100AF is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STPS1H100AF is new and unused, you can buy STPS1H100AF STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STPS1H100AF.
