| Manufacturer Part Number: | TK10V60W,LVQ |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 600V 9.7A 5DFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TK10V60W,LVQ Datasheet |
| Internal Part Number | 898-TK10V60W,LVQ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Discontinued | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Super Junction | |
| Drain to Source Voltage (Vdss) | 600V | |
| Current - Continuous Drain (Id) @ 25°C | 9.7A (Ta) | |
| Rds On (Max) @ Id, Vgs | 380 mOhm @ 4.9A, 10V | |
| Vgs(th) (Max) @ Id | 3.7V @ 500µA | |
| Gate Charge (Qg) @ Vgs | 20nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 700pF @ 300V | |
| Power - Max | 88.3W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |

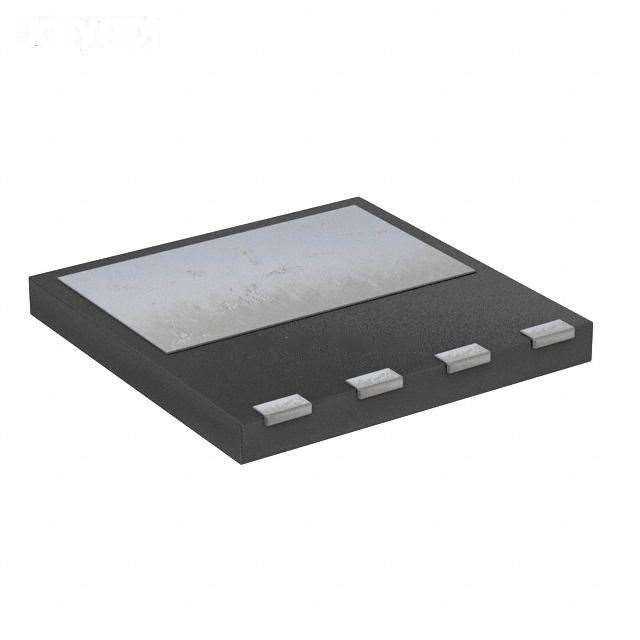

| Package / Case | 4-VSFN Exposed Pad | |
| Supplier Device Package | 5-DFN (8x8) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TK10V60W,LVQ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TK10V60W,LVQ is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TK10V60W,LVQ is new and unused, you can buy TK10V60W,LVQ Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TK10V60W,LVQ.
