| Manufacturer Part Number: | TS5A22362YZPR |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 21010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 740 mOhm 10-DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TS5A22362YZPR Datasheet |
| Internal Part Number | 898-TS5A22362YZPR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Datasheet Update 01/Jul/2015 | |
| PCN Assembly/Origin | Qualification Assembly Site 09/Jun/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Switch | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 740 mOhm | |
| Channel-to-Channel Matching (ΔRon) | 40 mOhm | |
| Voltage - Supply, Single (V+) | 2.3 V ~ 5.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 80ns, 70ns | |
| -3db Bandwidth | 18.3MHz | |
| Charge Injection | 10pC | |
| Channel Capacitance (CS(off), CD(off)) | 70pF | |
| Current - Leakage (IS(off)) (Max) | 50nA | |
| Crosstalk | -78dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

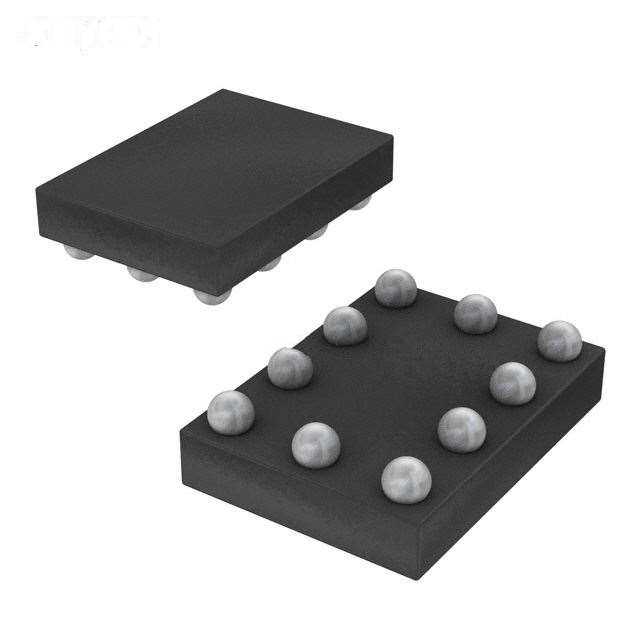

| Package / Case | 10-XFBGA, DSBGA | |
| Supplier Device Package | 10-DSBGA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TS5A22362YZPR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TS5A22362YZPR is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of TS5A22362YZPR is new and unused, you can buy TS5A22362YZPR T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TS5A22362YZPR.
